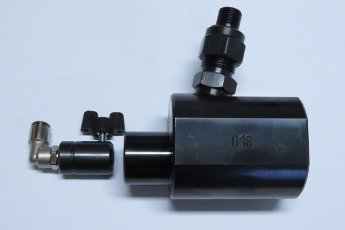

DL-016 (DL-CR31486) Adapter for testing SCANIA truck injectors on a bench or on a hand press
Обзор
DL-016 (DL-CR31486) Adapter for testing SCANIA truck injectors on a bench or on a hand press
Fuel is supplied from the high-pressure pipe through the side inlet.
It is necessary to install its front part in the place of the injector fuel supply and then screw it tightly to the injector. It is not allowed to overtighten or not reach the side supply fitting.
Backflow from the nozzle occurs through a quick-release fitting Ø 6mm
Applicability: SCANIA 2 or 4 contact nozzles
Contents of delivery:
adapter - 1 pc,
nozzle connector (9mm) - 1 piece,
side fitting - 1 piece,
fitting (quick adapter) - 2 pcs,
screw-"butterfly" - 1 pc.
